Description

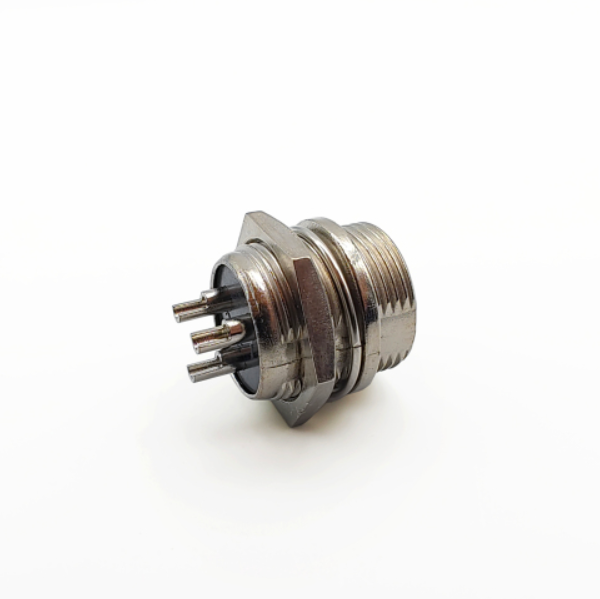

The JYFG‑GX16‑4P‑F GX16 Series 4‑Core Aviation Socket is a high‑performance panel‑mount female circular connector designed for reliable power and signal transmission in industrial and commercial applications. Featuring a standard GX16 interface with 4‑core design and threaded locking structure, this aviation socket provides secure, vibration‑proof connections for equipment panel cutout installation.
Engineered with a nickel‑plated zinc alloy metal shell, high‑temperature resistant insulator, and silver‑plated copper alloy terminals, the JYFG‑GX16‑4P‑F delivers excellent durability, corrosion resistance, and electrical performance. Its panel fixed mounting design makes it ideal for industrial equipment, instruments, motor controls, and power devices.
Key Features & Benefits
- Standard GX16 Circular Interface – Compliant with GX16 connector standard, 4‑core design, compatible with matching GX16 male plugs.
- Panel Fixed Mounting – Threaded locking structure for secure, vibration‑proof panel cutout installation.
- Nickel‑Plated Zinc Alloy Metal Shell – Offers excellent corrosion resistance, mechanical strength, and EMI shielding for long‑term durability.
- High‑Temperature Resistant Insulator – Provides reliable electrical isolation and withstands demanding operating conditions.
- Silver‑Plated Copper Alloy Terminals – Low contact resistance (≤10mΩ), high conductivity, and superior wear resistance.
- IP44 Protection Rating – Dust‑protected and splash‑proof, suitable for demanding industrial environments.
- Wide Operating Temperature Range – -40℃ to +85℃, suitable for extreme environmental conditions.
- 1000+ Mating Cycles – Engineered for long‑term reliability in high‑use applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | JYFG‑GX16‑4P‑F |
| Series | GX16 |
| Gender | Female (Socket) |
| Number of Cores | 4 |
| Mounting Type | Panel Mount (Fixed, Threaded Locking) |
| Locking Mechanism | Threaded Locking Structure |
| Shell Diameter / Panel Cutout | 16mm |
| Shell Material | Nickel‑Plated Zinc Alloy |
| Contact Material | Silver‑Plated Copper Alloy |
| Insulator Material | High‑Temperature Resistant Insulator |
| Rated Voltage | 250V AC |
| Rated Current | 5A |
| Contact Resistance | ≤10mΩ |
| Insulation Resistance | ≥1000MΩ |
| Protection Rating | IP44 |
| Mating Cycles | ≥1000 cycles |
| Operating Temperature | -40℃ ~ +85℃ |
* Specifications are for reference only. Please contact our sales team for detailed product drawings and custom configurations.
Typical Applications
The JYFG‑GX16‑4P‑F GX16 aviation socket is widely used in:
| Industry | Application |
|---|---|
| Industrial Equipment | CNC machines, industrial robots, servo drives, welding equipment |
| Instrumentation | Test and measurement equipment, sensors, data acquisition systems |
| Motor Controls | Motor drivers, variable frequency drives, control panels |
| Power Devices | Power supplies, battery systems, charging equipment |
| Audio/Video Equipment | Professional audio, broadcast equipment, stage lighting |
| Medical Devices | Diagnostic equipment, patient monitoring systems |
Why Choose JY Forge?
- Manufacturing Excellence – Precision‑engineered GX16 connectors built to meet rigorous industrial standards.
- Quality Assurance – Every connector undergoes strict quality control testing to ensure reliability and performance.
- Wide Product Range – Available in 2 to 10‑pin configurations to suit diverse application requirements.
- Customization Support – Core count, contact plating, and cable assembly can be tailored to your specific needs.
- Global Supply Chain – Reliable delivery for OEM and distribution partners worldwide.
- Technical Support – Expert engineering team available for design‑in assistance and application guidance.
Certifications & Compliance
JY Forge products are manufactured in compliance with international quality and environmental standards. Please contact us for specific certification documentation including:
- ISO 9001 Quality Management System
- RoHS Compliance
- REACH Compliance
- Product‑specific test reports upon request
Ordering Information
| Item | Details |
|---|---|
| Product Name | GX16 Series 4‑Core Aviation Socket – Panel Mount Female |
| Model | JYFG‑GX16‑4P‑F |
| Mounting Type | Panel Mount (Threaded Locking) |
| Gender | Female (Socket) |
| Minimum Order Quantity (MOQ) | Please inquire |
| Lead Time | Stock available / Custom orders: please consult |
| Shipping | Worldwide shipping available |
Frequently Asked Questions (FAQs)
Q: What is the panel cutout diameter for this connector?
A: The JYFG‑GX16‑4P‑F requires a standard 16mm panel cutout diameter, which is the industry standard for GX16 series connectors.
Q: What is the voltage and current rating?
A: This connector is rated at 250V AC and 5A, making it suitable for a wide range of industrial power and signal transmission applications.
Q: What is the protection rating?
A: The JYFG‑GX16‑4P‑F provides IP44 protection, offering dust protection and splash‑proof sealing for demanding industrial environments.
Q: What is the mating cycle life?
A: This connector is rated for ≥1000 insertion/withdrawal cycles, ensuring long‑term durability in high‑use applications.
Q: What is the operating temperature range?
A: The JYFG‑GX16‑4P‑F operates reliably from -40℃ to +85℃, suitable for extreme environmental conditions.
Q: How is this connector mounted?
A: This is a panel‑mount socket with a threaded locking structure, designed for fixed installation on equipment panel cutouts.
Q: Is this product RoHS compliant?
A: Yes. All JY Forge products are RoHS, REACH, and halogen‑free compliant.
