Description

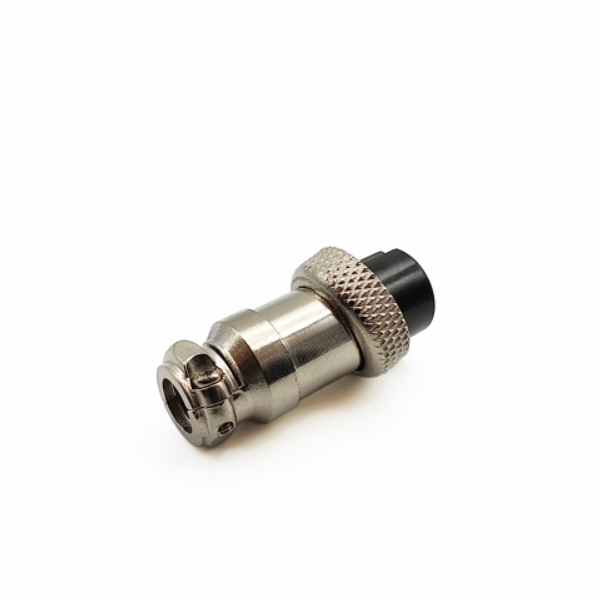

The JYFG‑GX16‑M GX16 Series Aviation Plug is a high‑performance male cable‑mount circular connector designed for reliable power and signal transmission in industrial and commercial applications. Featuring a standard GX16 interface with threaded locking nut for secure, vibration‑proof connections, this aviation plug is compatible with matching GX16 female sockets and available in 2 to 8‑pin configurations.
Engineered with a nickel‑plated zinc alloy metal shell, high‑temperature resistant insulator, and silver‑plated copper alloy terminals, the JYFG‑GX16‑M delivers excellent durability, corrosion resistance, and electrical performance. Its cable crimping/soldering installation design makes it ideal for industrial equipment, instruments, motor controls, and power devices.
Key Features & Benefits
- Standard GX16 Circular Interface – Compliant with GX16 connector standard, compatible with matching GX16 female sockets, available in 2‑8 pin configurations.
- Threaded Locking Nut – Knurled locking nut provides secure threaded locking and anti‑loosening, ensuring reliable connections in high‑vibration environments.
- Cable Crimping/Soldering Installation – Flexible cable‑mount design supports both crimping and soldering termination methods.
- Nickel‑Plated Zinc Alloy Metal Shell – Offers excellent corrosion resistance, mechanical strength, and EMI shielding for long‑term durability.
- Silver‑Plated Copper Alloy Terminals – Low contact resistance, high conductivity, and superior wear resistance.
- High‑Temperature Resistant Insulator – Provides reliable electrical isolation and withstands demanding operating conditions.
- IP44 Protection Rating – Dust‑protected and splash‑proof, suitable for demanding industrial environments.
- Wide Operating Temperature Range – -40℃ to +85℃, suitable for extreme environmental conditions.
- 1000+ Mating Cycles – Engineered for long‑term reliability in high‑use applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | JYFG‑GX16‑M |
| Series | GX16 |
| Gender | Male (Plug) |
| Mounting Type | Cable Mount (Crimping/Soldering) |
| Locking Mechanism | Threaded Locking Nut (Knurled) |
| Shell Diameter | 16mm (M16 Thread) |
| Number of Pins | 2, 3, 4, 5, 6, 7, 8 (configurable) |
| Shell Material | Nickel‑Plated Zinc Alloy |
| Contact Material | Silver‑Plated Copper Alloy |
| Insulator Material | High‑Temperature Resistant Insulator |
| Rated Voltage | 250V AC |
| Rated Current | 3‑5A (depending on pin count) |
| Contact Resistance | ≤0.005Ω |
| Insulation Resistance | ≥1000MΩ |
| Protection Rating | IP44 |
| Mating Cycles | ≥1000 cycles |
| Operating Temperature | -40℃ ~ +85℃ |
* Rated current varies by pin count: 2‑4 pin configurations typically support higher current; 5‑8 pin configurations support lower current. Please contact our sales team for detailed specifications and custom configurations.
Pin Configuration Options
| Model | Pin Count | Typical Applications |
|---|---|---|
| JYFG‑GX16‑2P‑M | 2 Pin | Power transmission, simple signal connections |
| JYFG‑GX16‑3P‑M | 3 Pin | Single‑phase power, sensor connections |
| JYFG‑GX16‑4P‑M | 4 Pin | Three‑phase power, motor control |
| JYFG‑GX16‑5P‑M | 5 Pin | Multi‑signal transmission, instrumentation |
| JYFG‑GX16‑6P‑M | 6 Pin | Complex signal and power combinations |
| JYFG‑GX16‑7P‑M | 7 Pin | Industrial control, PLC systems |
| JYFG‑GX16‑8P‑M | 8 Pin | High‑density signal transmission |
Typical Applications
The JYFG‑GX16‑M GX16 aviation plug is widely used in:
| Industry | Application |
|---|---|
| Industrial Equipment | CNC machines, industrial robots, servo drives, welding equipment |
| Instrumentation | Test and measurement equipment, sensors, data acquisition systems |
| Motor Controls | Motor drivers, variable frequency drives, control panels |
| Power Devices | Power supplies, battery systems, charging equipment |
| Audio/Video Equipment | Professional audio, broadcast equipment, stage lighting |
| Medical Devices | Diagnostic equipment, patient monitoring systems |
Why Choose JY Forge?
- Manufacturing Excellence – Precision‑engineered GX16 connectors built to meet rigorous industrial standards.
- Quality Assurance – Every connector undergoes strict quality control testing to ensure reliability and performance.
- Wide Pin Count Range – Available in 2 to 8‑pin configurations to suit diverse application requirements.
- Customization Support – Pin count, contact plating, and cable assembly can be tailored to your specific needs.
- Global Supply Chain – Reliable delivery for OEM and distribution partners worldwide.
- Technical Support – Expert engineering team available for design‑in assistance and application guidance.
Certifications & Compliance
JY Forge products are manufactured in compliance with international quality and environmental standards. Please contact us for specific certification documentation including:
- ISO 9001 Quality Management System
- RoHS Compliance
- REACH Compliance
- Product‑specific test reports upon request
Ordering Information
| Item | Details |
|---|---|
| Product Name | GX16 Series Aviation Plug – Male Cable Mount |
| Base Model | JYFG‑GX16‑M |
| Pin Count Options | 2P, 3P, 4P, 5P, 6P, 7P, 8P |
| Mounting Type | Cable Mount (Crimping/Soldering) |
| Minimum Order Quantity (MOQ) | Please inquire |
| Lead Time | Stock available / Custom orders: please consult |
| Shipping | Worldwide shipping available |
Frequently Asked Questions (FAQs)
Q: What pin configurations are available for this connector?
A: The JYFG‑GX16‑M is available in 2, 3, 4, 5, 6, 7, and 8‑pin configurations to suit a wide range of power and signal transmission applications.
Q: What is the voltage and current rating?
A: This connector is rated at 250V AC, with current ratings ranging from 3A to 5A depending on the pin count. Lower pin counts typically support higher current ratings.
Q: What is the protection rating?
A: The JYFG‑GX16‑M provides IP44 protection, offering dust protection and splash‑proof sealing for demanding industrial environments.
Q: What is the mating cycle life?
A: This connector is rated for ≥1000 insertion/withdrawal cycles, ensuring long‑term durability in high‑use applications.
Q: What is the operating temperature range?
A: The JYFG‑GX16‑M operates reliably from -40℃ to +85℃, suitable for extreme environmental conditions.
Q: How is this connector installed?
A: This is a cable‑mount connector that supports both crimping and soldering termination methods, providing flexibility for different assembly processes.
Q: Is this product RoHS compliant?
A: Yes. All JY Forge products are RoHS, REACH, and halogen‑free compliant.
