Description

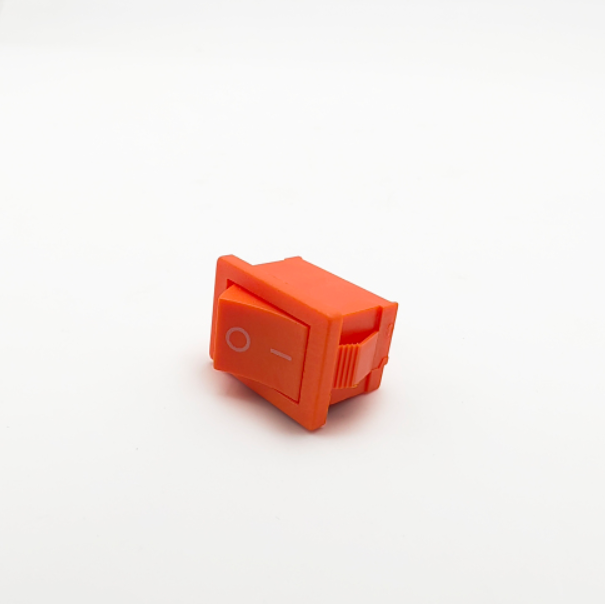

The JYFS‑KCD1‑OR KCD1 Orange Rocker Switch is a high‑quality single‑pole single‑throw (SPST) on‑off power switch designed for reliable circuit control in a wide range of electronic and electrical applications. Featuring a distinctive orange actuator with a standard snap‑in panel mount design, this rocker switch provides a secure, vibration‑resistant installation and intuitive operation.
Engineered with a durable Nylon 66 housing, silver‑plated brass terminals, and a compact rectangular body, the JYFS‑KCD1‑OR delivers excellent electrical performance, mechanical strength, and long‑term reliability. Its snap‑in mounting design makes it ideal for small household appliances, power supplies, industrial equipment, automotive electronics, and consumer devices.
Key Features & Benefits
- SPST On‑Off Function – Single‑pole single‑throw circuit control, providing simple and reliable on‑off switching for power circuits.
- Distinctive Orange Actuator – High‑visibility orange rocker for easy identification and intuitive operation, enhancing user experience.
- Snap‑In Panel Mount Design – Tool‑free snap‑in installation into standard rectangular panel cutouts, reducing assembly time and costs.
- Nylon 66 Housing – High‑strength, flame‑retardant material (UL94V‑0 rated) providing excellent heat resistance and electrical insulation.
- Silver‑Plated Brass Terminals – Low contact resistance, excellent conductivity, and superior corrosion resistance for reliable performance.
- Compact Rectangular Body – Space‑saving design suitable for applications with limited panel space.
- High Electrical Rating – Rated up to 16A at 250VAC, supporting a wide range of power applications.
- Wide Operating Temperature Range – -25℃ to +85℃, suitable for diverse environmental conditions.
- Long Mechanical Life – Rated for ≥10,000 switching cycles, ensuring long‑term durability in high‑use applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | JYFS‑KCD1‑OR |
| Series | KCD1 |
| Switch Type | Rocker Switch |
| Circuit Configuration | SPST (Single‑Pole Single‑Throw) |
| Switch Function | ON‑OFF (2‑Position) |
| Mounting Type | Snap‑In Panel Mount |
| Panel Cutout Dimensions | 19mm × 13mm (standard rectangular) |
| Switch Body Dimensions | 21mm × 15mm (typical) |
| Actuator Color | Orange |
| Housing Material | Nylon 66, UL94V‑0 Flame Retardant |
| Terminal Material | Brass, Silver‑Plated |
| Number of Terminals | 2 Pins |
| Rated Voltage | 250V AC |
| Rated Current | 6A / 10A / 16A (configurable) |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
| Dielectric Strength | ≥1500V AC / 1 minute |
| Operating Temperature | -25℃ ~ +85℃ |
| Mechanical Life | ≥10,000 cycles |
| Electrical Life | ≥10,000 cycles |
| Flammability Rating | UL94V‑0 |
* Specifications are for reference only. Rated current varies by model configuration. Please contact our sales team for detailed product drawings and custom configurations.
Typical Applications
The JYFS‑KCD1‑OR orange rocker switch is widely used in:
| Industry | Application |
|---|---|
| Small Household Appliances | Electric kettles, coffee machines, juicers, rice cookers, hair dryers |
| Power Supplies | Power strips, adapters, battery chargers, UPS systems |
| Industrial Equipment | Control panels, machinery, testing instruments, automation devices |
| Automotive Electronics | Vehicle accessories, lighting systems, dashboard controls |
| Consumer Electronics | Audio equipment, fans, heaters, portable devices |
| Medical Devices | Portable diagnostic equipment, therapy devices, monitoring systems |
Why Choose JY Forge?
- Manufacturing Excellence – Precision‑engineered rocker switches built to meet rigorous quality standards.
- Quality Assurance – Every switch undergoes strict quality control testing to ensure reliability and performance.
- Wide Product Range – Available in various colors, ratings, and configurations to suit diverse application requirements.
- Customization Support – Actuator color, terminal type, electrical rating, and packaging can be tailored to your specific needs.
- Global Supply Chain – Reliable delivery for OEM and distribution partners worldwide.
- Technical Support – Expert engineering team available for design‑in assistance and application guidance.
Certifications & Compliance
JY Forge products are manufactured in compliance with international quality and environmental standards. Please contact us for specific certification documentation including:
- ISO 9001 Quality Management System
- RoHS Compliance
- REACH Compliance
- UL94V‑0 Flammability Rating
- Product‑specific test reports upon request
Ordering Information
| Item | Details |
|---|---|
| Product Name | KCD1 Orange Rocker Switch – Snap‑In Panel Mount |
| Model | JYFS‑KCD1‑OR |
| Mounting Type | Snap‑In Panel Mount |
| Terminals | 2‑Pin SPST |
| Minimum Order Quantity (MOQ) | Please inquire |
| Lead Time | Stock available / Custom orders: please consult |
| Shipping | Worldwide shipping available |
Frequently Asked Questions (FAQs)
Q: What is the panel cutout size required for this switch?
A: The JYFS‑KCD1‑OR requires a standard rectangular panel cutout of approximately 19mm × 13mm. Please refer to the product drawing for precise dimensions.
Q: What is the electrical rating of this switch?
A: This switch is available in multiple ratings including 6A, 10A, and 16A at 250V AC. Please specify your requirement when ordering.
Q: What type of circuit does this switch support?
A: The JYFS‑KCD1‑OR is a single‑pole single‑throw (SPST) switch with a simple ON‑OFF function.
Q: What is the operating temperature range?
A: This rocker switch operates reliably from -25℃ to +85℃, suitable for most consumer and industrial environments.
Q: What is the mechanical life expectancy?
A: The JYFS‑KCD1‑OR is rated for ≥10,000 switching cycles, ensuring long‑term durability in high‑use applications.
Q: Is this switch suitable for automotive applications?
A: Yes. With its robust construction and reliable performance, this switch is suitable for various automotive electronics applications.
Q: Is this product RoHS compliant?
A: Yes. All JY Forge products are RoHS, REACH, and halogen‑free compliant.
